    GX160 TX2 Honda OHV Engine w/Threaded Crankshaft - FREE SHIPPING

    Manufacturers: Honda® , Honda Engines
    160cc Honda OHV Engine w/Threaded Crankshaft Free Shipping Continental U.S. Only
    SKU: 656690
    Availability: 25 in stock
    $385.00
    i h
    Free shipping

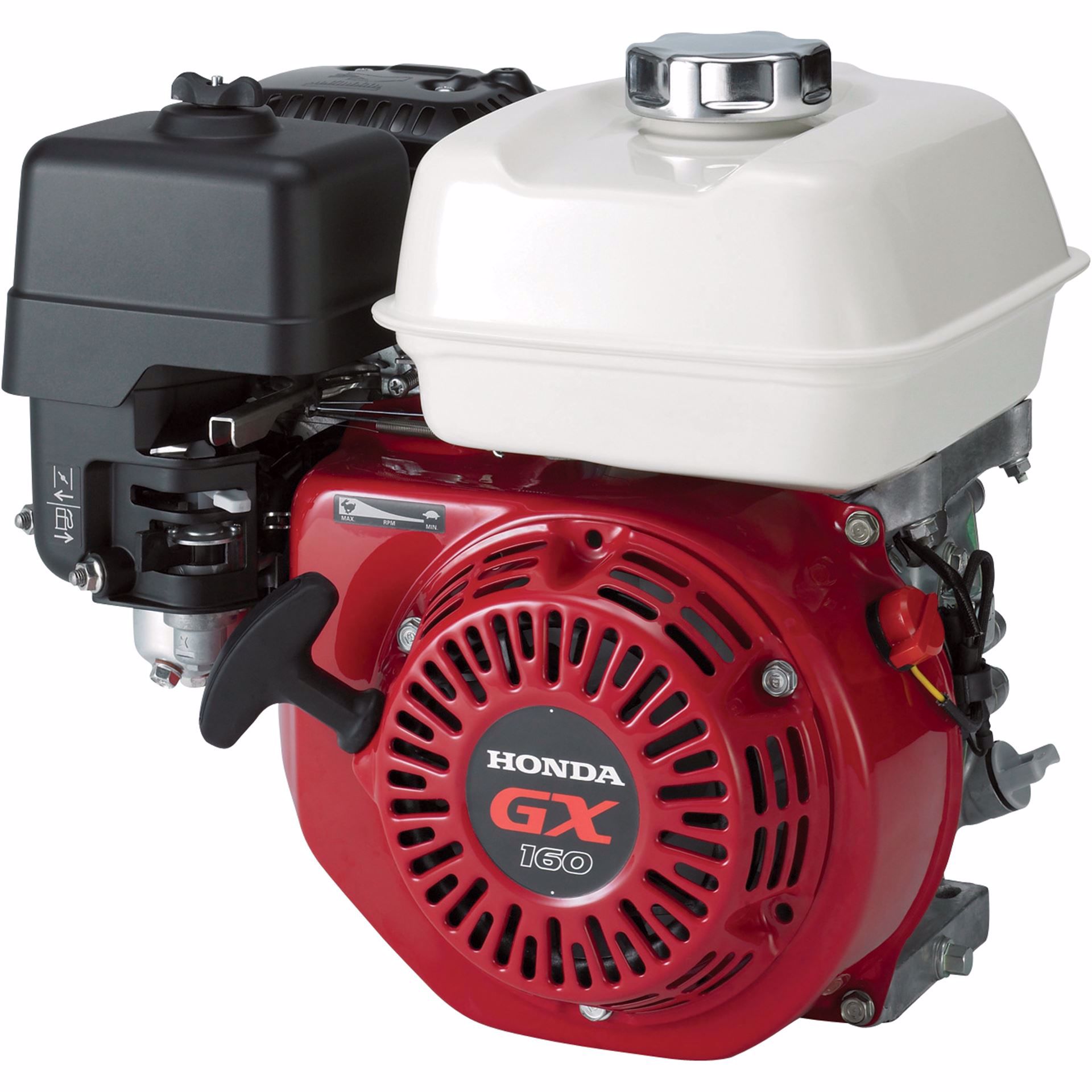

    GX160 TX2 Honda Horizontal OHV Engine w/ Threaded Crankshaft - FREE SHIPPING

    GX160-TX2 is an OHV horizontal shaft lightweight engine. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life.

    Features Include:

    • 160cc, net 4.8HP
    • 5/8" x 2 7/16" threaded crankshaft
    • Fuel Tank
    • Oil alert
    • 50-State CARB compliant

    Warranty36 Months Private Residential; 36 Months Commercial,Rental,Institutional
    Displacement Range121cc - 240cc
    Engine BrandHonda OHV
    Crankshaft Diameter5/8-18
    Crankshaft Length2-7/16"
    Crankshaft End Tapped SizeN/A
    Crankshaft Keyway WidthNone
    Air Cleaner TypeDual Element
    Throttle ControlManual
    Starter TypeRecoil
    PTO Height4-11/64
    Max RPM3600
    Oil CoolerNo
    Carburetor TypeFloat
    Valve StyleOHV
    Recoil Starter Position9:00 O'Clock
    Displacement163cc
    Ignition SystemTransistorized Magneto
    Lubrication SystemSplash
    Oil Capacity20
    MufflerYes
    Fuel SystemGasoline
    Governor SystemCentrifugal Mechanical
    Gear ReductionNo
    Charging SystemNone
    Choke ControlManual
    Cooling SystemAir
    TypeSmall Engines
    Fuel PumpNo
    Auxiliary PTONo
    Compression ReleaseYes
    MFG Rated Output4.8 Net HP
    CPSC CompliantNo
    Low Oil ShutdownYes
    Low Oil Alert/ShutdownNo
    Compression Ratio9.0:1
    Extended Recoil RopeNo
    Oil FilterNo
    Bolt Circle (in.)3-5/8
    Crankshaft TypeThreaded
    Oil PumpNo
    Fuel FilterYes
    Control BoxNo
    Cylinders (quantity)1
    Cylinder Bore TypeCast Iron
    Bore x Stroke68 x 45 mm
    Crankshaft StyleHorizontal
    For Use in CaliforniaYes
    Crankshaft Rotation Direction (from PTO Shaft Side)Counterclockwise
    ColorRed

    Products specifications
    Product TypeParts
    Engine BrandHonda®
